Lenses can protect eyes from radiation, water loss and even include an integral LED

Graphene-coated contact lenses could help usher in an era of wearable eye electronics that monitor health, while offering eyes protection from electromagnetic radiation and moisture loss.1

Bionic technologies that furnish our eyes with night vision, augmented reality or health monitoring capabilities may sound like science fiction. But these are some of the real applications under development for smart contact lenses thanks to miniaturisiation and biocompatibility of electronic devices.

However, such devices will likely communicate and be powered by radio waves, posing increased eye exposure to electromagnetic radiation. ‘The electromagnetic shielding function for contact lenses is of great importance because it is known that electromagnetic waves are a potential cause of eye diseases including cataracts,’ says Byung Hee Hong, who produced the graphene-coated contact lenses at Seoul National University in South Korea. Wearing contact lenses can also lead to painful conditions such as dry eye syndrome, making moisture retention a desirable property.

Smart contact lenses with graphene coating illustration - GA

Source: © 2017 American Chemical Society

The smart contact lens can protect a user’s eye from electromagnetic radiation and prevent the eye from drying out

Since graphene is transparent and flexible with unique electrical and magnetic properties, as well as being chemically and biologically inert, Hong’s team coated ordinary contact lenses with graphene to find out if it could offer eye protection. Contact lenses with and without the graphene coating were placed over samples of raw egg white, which has a composition similar to the inner eye. When zapped in a microwave for 50 seconds at 120W to mimic the wavelengths of 4G and Bluetooth, the egg under the ordinary contact lens got cooked while the graphene lens minimised the damage by absorbing and dissipating the electromagnetic energy.

’We didn’t imagine that the egg whites under a graphene-coated contact lens would survive the strong electromagnetic radiation from a microwave oven,’ explains Hong. ‘It was truly surprising that an atom-thick layer can make such dramatic difference.’ The team also monitored water loss from a vial capped with a graphene lens and noted a 30% drop. A final experiment saw the team incorporate an LED into a lens.

The researchers are now developing the technology in collaboration with a contact lens company and planning tests with volunteers. ‘I believe that the graphene contact lens will be commercially available within one or two years,’ says Hong. ‘In addition, we are planning to integrate an active circuit with graphene-based sensors and electrodes for real-time wireless or colorimetric monitoring of glucose concentration in tears for diabetes diagnosis.’

Smart contact lenses with graphene coating switching on/off - Fig5g

Source: © 2017 American Chemical Society

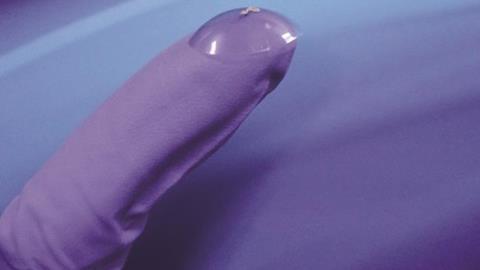

The Korean researchers showed that the graphene-coated contact lens could host an LED

‘This research begins to marry the large scale manufacturing processes from the semiconductor industry with the soft materials of contact lenses,’ comments Drew Evans, who recently grew conducting polymer films on contact lenses at the University of South Australia.2 ‘This goes beyond the routinely tested electrical properties of graphene. While much more work is still necessary to bring this into people’s daily lives, the presented research takes one more step closer to this.’
